Full automatic tube punching machine - Foshan BST Machinery Co., Ltd.

Machine features

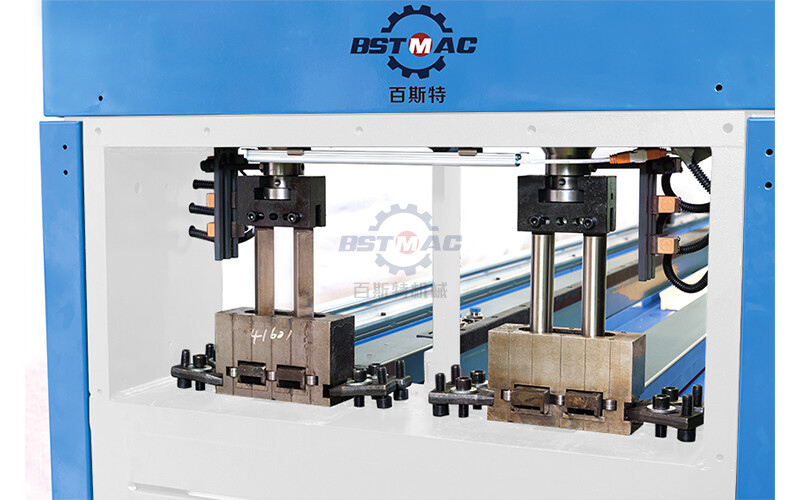

1. Full automatic CNC punching.
2. Single or multiple tubes can be punched at one time.
3. It can automatically punch any hole distance on the same tube.

Basic system parameter setting: Set the working modes of the left and right two working stations, count the workload, and set the servo motor related parameters.

Full automatic punching system: Automatic calculation of equal hole distances and unequal hole distances, random combination of punching unequal holes, full hole/half hole and skipping without punching can be controlled at random.

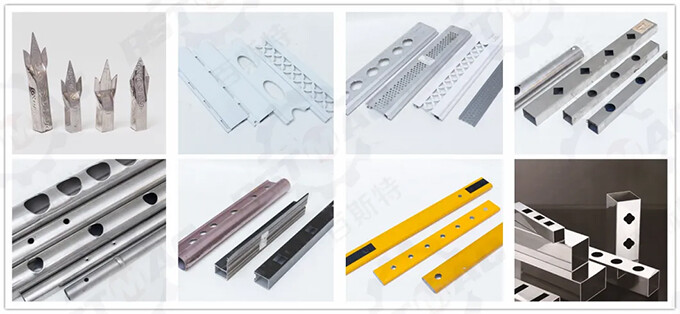

Processing samples

Technical parameters

Automatic CNC punching machine
Model	BST-80-2-CK	BST-100-2-CK	BST-125-2-CK
Hydraulic motor power	7. 5KW	11KW	11KW
Cylinder specifications	80*100mm	100*100mm	125*100mm
Punching stroke	100mm	100mm	100mm
Punching force	80Kn	125Kn	196Kn
Max. pressure	16Mpa	16Mpa	16Mpa
Punching materials and objects	Aluminum, iron, stainless steel, brass, copper, PVC tubes and profiles. Angle iron, C-shape steel, channel steel and other irregular shaped profiles.
Profiles punching size	Square tube: Max. 6060mm (half hole punching), 5050mm (full hole punching). Angle iron: Max. L6060mm. Rectangular tube: Max. 50100mm.
Punching thickness	0-1.0mm	0-2.0mm	0-3.0mm
Power supply	380V-50Hz
Control voltage	DC24V
Cooling method	Forced air cooling
Control system type	Closed loop control system
Punching frequency	0.3-1.5S/Time		0.8-2.0S/Time
Servo system	750W		1KW
Operating system	User-friendly touch screen operation
Touch screen	7 inches
Guide rail	Linear guide rail
Oil tank capacity	100L	180L	180L
Oil tank inspection port	Available
Oil tank drain	Quick ball valve type
Working light	DC24V-LED working light
Protection System	Hydraulic pressure protection, voltage protection, motor phase loss and phase sequence protection, motor overheating protection
Working length	6000mm
Overall dimension	68001500900mm	68001500900mm	68001500900mm
Machine weight	1.9T	2.1T	2.4T

Applications

The CNC tube punching machine is widely used in aluminum alloy doors and windows, stainless steel stair handrail, metal mesh, fence, storage shelves, zinc steel guardrail, reveal frame, hardware and sanitary ware, dryer, communications antenna frame, metal furniture, telescopic doors, building accessories, greenhouses, municipal construction, sports equipment, automobile, motorcycle, bicycle, stainless steel decoration products, etc.

It can do any shape of hole punching on round tube, square tube, rectangle tube, angle iron, channel steel and other irregular shapes of tubes/profiles, etc.
