Hole and angle punching and cutting machine

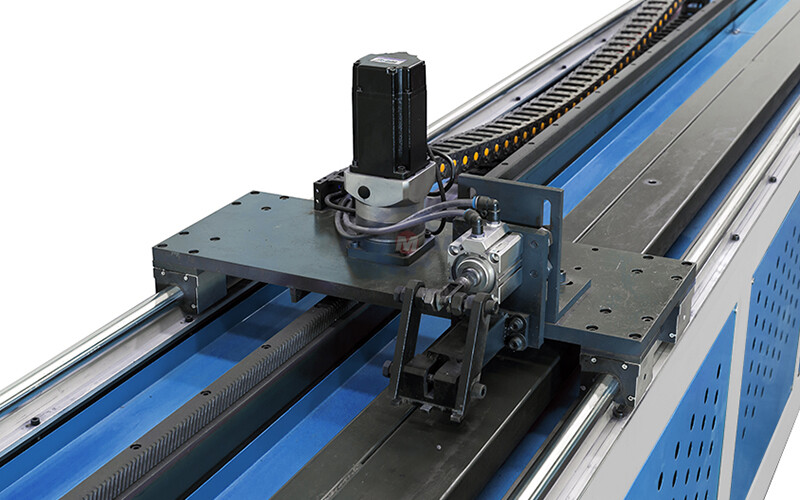

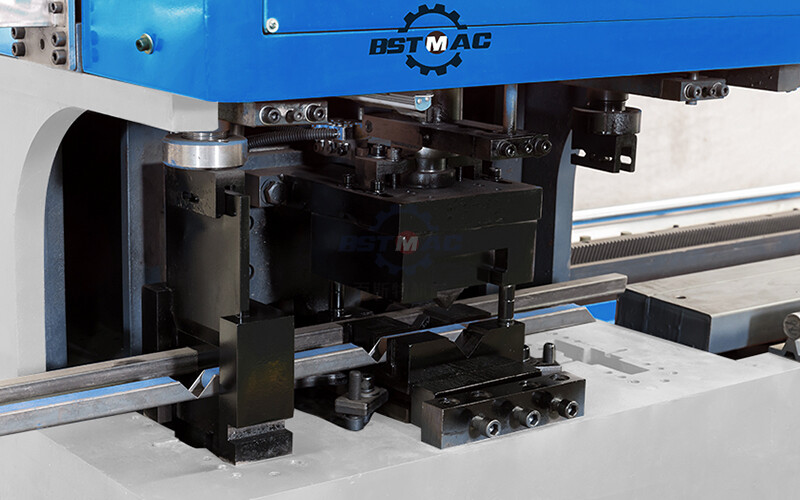

Machine features
1. The Pipe/Tube Punching Machine is suitable for materials such as steel tubes, aluminum tubes, zinc steel tubes, galvanized steel tubes and stainless steel tubes. For gates, doors, windows, security fence, metal furnitures manufacturing, etc.
2. The machine can do automatic hole punching, automatic 45 degrees angle punching and automatic cutting off the materials, then bend to 90 degrees.
3. Hole shape: round hole, square hole, rectangular hole, triangular hole, plum blossom hole and any shape required.
4. Half hole (single-side hole) and full hole (double-side holes) can be punched on a pipe with equal or unequal hole distance.
Technical parameters
|
Automatic hole and angle punching and cut off machine |
|
|
Model |
BST-80-45-CKCD |
|
Hydraulic motor power |
7.5KW |
|
Oil cylinder specs. |
80*100mm |
|
Punching stroke |
100mm |
|
Punching force |
80Kn |
|
Max. pressure |
16Mpa |
|
Punching materials and objects |
Material: aluminum, iron, stainless steel, brass, copper, PVC. Profiles: tube, angle iron, C-shape steel, channel steel and other irregular shaped profiles. |
|
Punching size |
Square tube: Max. 60*60mm (half hole punching), 50*50mm (full hole punching). |
|
Power supply |
380V-50Hz |
|
Control voltage |
DC24V |
|
Cooling method |
Forced air cooling 150L |
|
Control system type |
Closed loop control system |
|
Punching frequency |
0.3-1.5S/Time |
|
Servo system |
1KW |
|
Operating system |
User-friendly touch screen operation |
|
Touch screen |
10 inches |
|
Guide rail |
Linear guide rail |
|
Oil tank capacity |
138L |
|
Oil tank inspection port |
Available |
|
Oil tank drain |
Quick ball valve type |
|
Working light |
DC24V-LED working light |
|
Protection System |
Hydraulic pressure protection, voltage protection, motor phase loss and phase sequence protection, motor overheating protection |
|
Working length |
6000mm |
|
Overall dimension |
L 6800* H 1500* W 1200mm |
|
Machine weight |
1.2T |

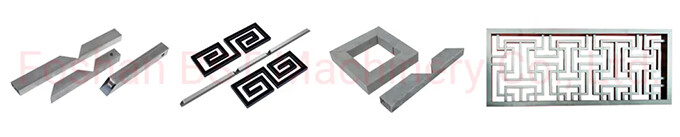

Processing samples
Application industries
FAQ
A: You have to inform us the following details:
- The tube shape and size – including wall thickness.
- Material to be punched
- The maximum tube length
- The shape and size of the hole(s) to be punched
- The distance between each hole, how many holes and where they are located in the tube.
- The drawings if possible
A: It's fast. Skilled operator can finish within 10 minutes.
A: Our machine warranty is one year, and we use all the stable components with long working life!
A: We are a manufacturer, we are dedicated to metalworking machines manufacturing.
A: EXW / FOB / CNF / CIF / DDU / DDP.
A: Strict quality control, vision inspection one by one before packing.
