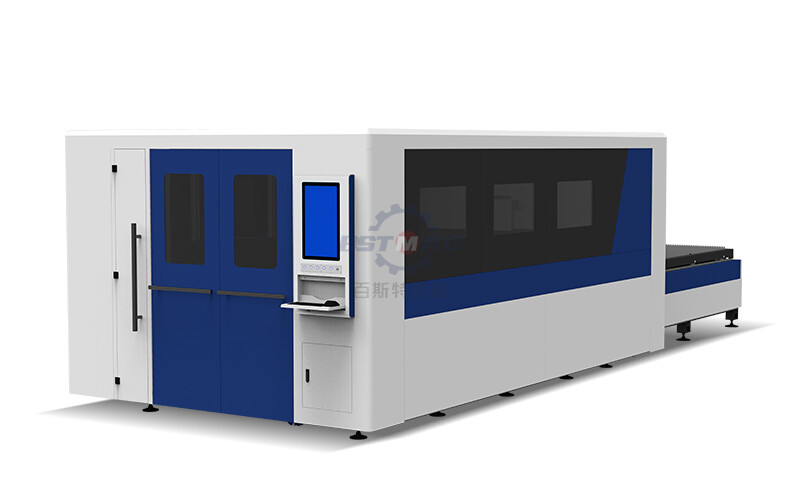

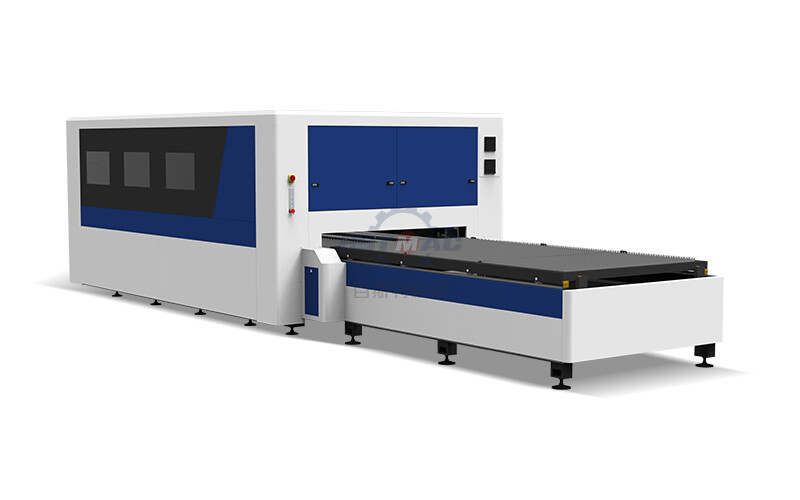

Fully-enclosed Sheet Metal Laser Cutting Machine With Double Worktables

Machine features

High performance laser device associated with stable operation system enables optimal cutting effects.

2.Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.

3.Double worktables make plates loading and unloading available during cutting, which improves the processing efficiency.

4.Large-size closed enclosure improves dedusting effects and avoids optical pollution.

5.Automatic height-adjustment performance keeps constant focal length and stable cutting quality.

6.Gantry structure and inblock aluminum cast cross beam make the equipment rigid, stable and antiknock.

7.It could cut metal in various materials and realize excellent and stable cutting effects.

Technical parameters

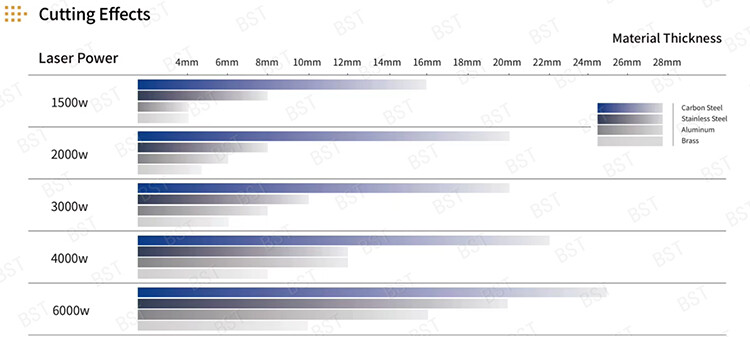

Cutting Thickness Parameters:

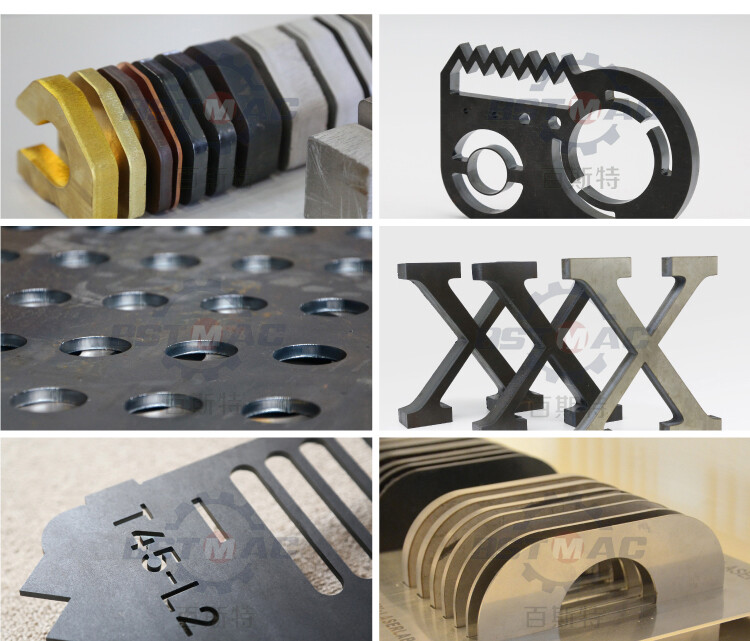

Applications and Cutting Samples:

Fiber laser cutting machines are gradually playing an important part in the metal fabrication industry. Such as metal signage, interior decoration, engineering parts, sheet metal cabinets, automobile industry, advertising industry, kitchenware industry, home appliance, elevators, doors and windows, and other industries.

Almost all materials common in the metal processing industry, steel, aluminum alloy, carbon steel, mild steel, galvanized steel, steel coil, zinc coated steel sheet, brass, stainless steel, electrolytic plate, and other ferrous and non-ferrous metals can be fastly and accurately cut by the laser cutting machine.

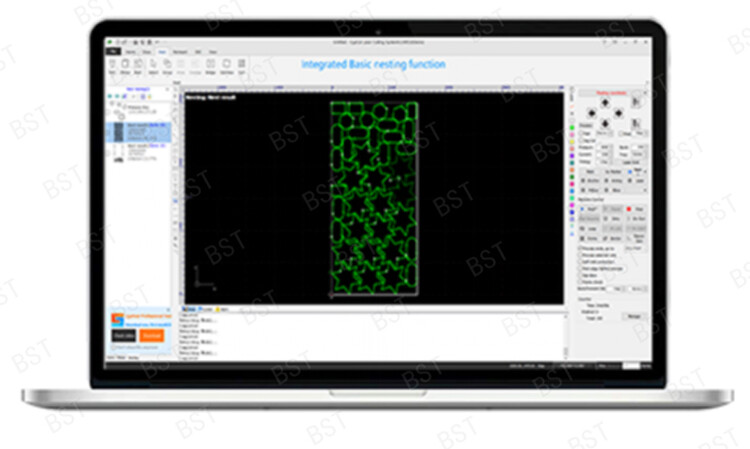

Easy Operation Cypcut Control System

> Simple and convenient operation
> User-Friendly operation interface
> Rich cutting process database for diversified cutting



Developed by the leading developers, the system provides various intelligent functions to help you free your hands in metal fabrication. Smart technology such as fly cut, common-edge cutting, micro-joint, leapfrog, centering, smart collision prevention, automatic edge seeking, etc.

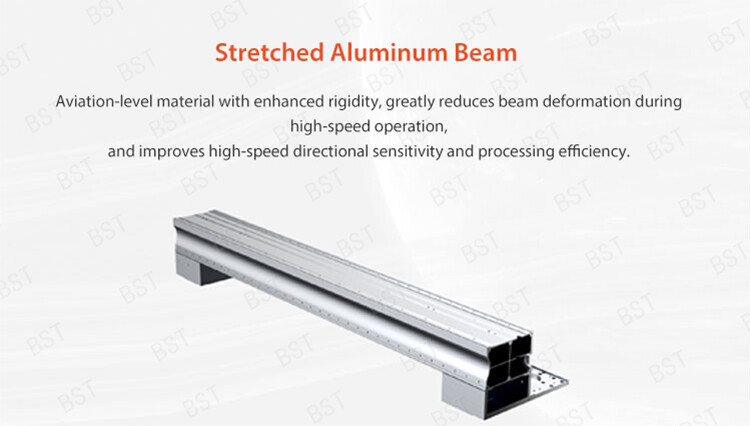

Aircraft-grade Extrudded and Stretched Integrated Aluminum Crossbeam

Ultra high pressure stretching process and lightweight design;
Structural strength enhanced by 25%;
Weight goes down by 30%;

Quality Control

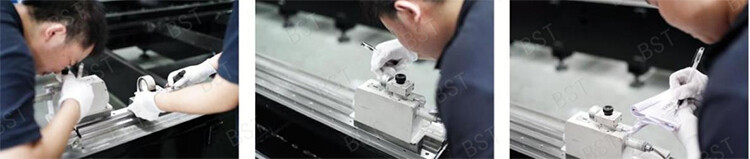

Machine body testing is important for checking quality of a laser machine, especially motion parts installation, which ensure running and cutting accuracy, here we introduce you how we test our laser machine.



1. Linear guide parallelism examination, our requirement ≤±0.02mm.
2. Rack installation, accuracy lower than ≤±0.02mm.
3. Guide gap detection, our requirement ≤±0.03mm.
