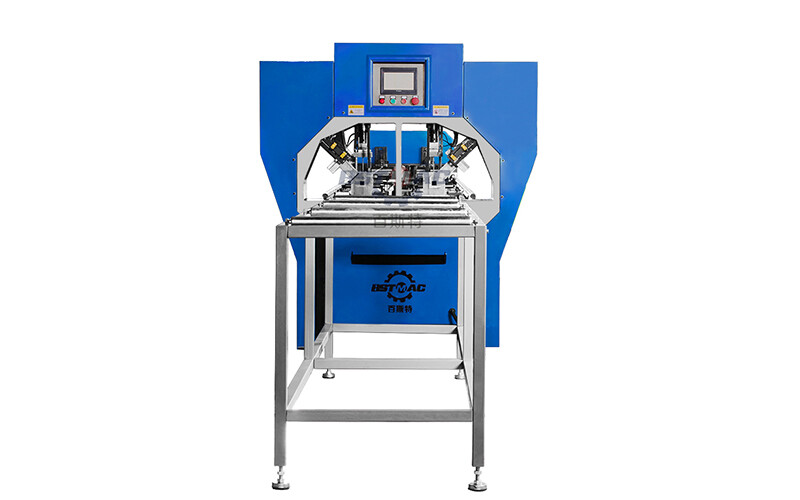

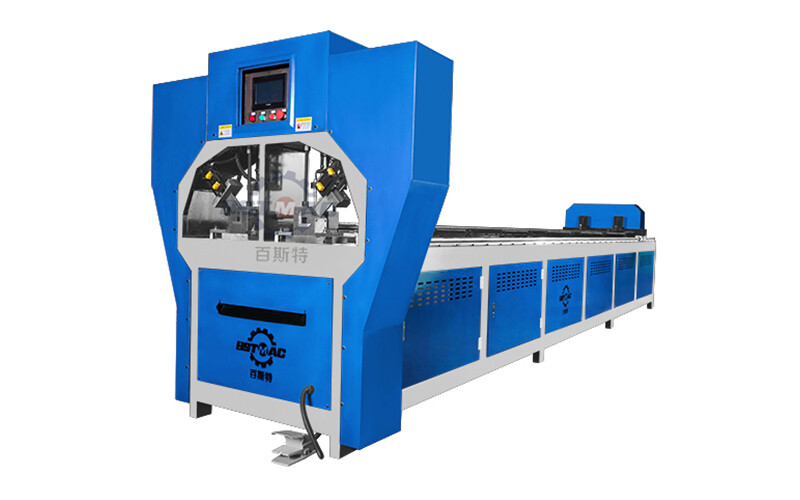

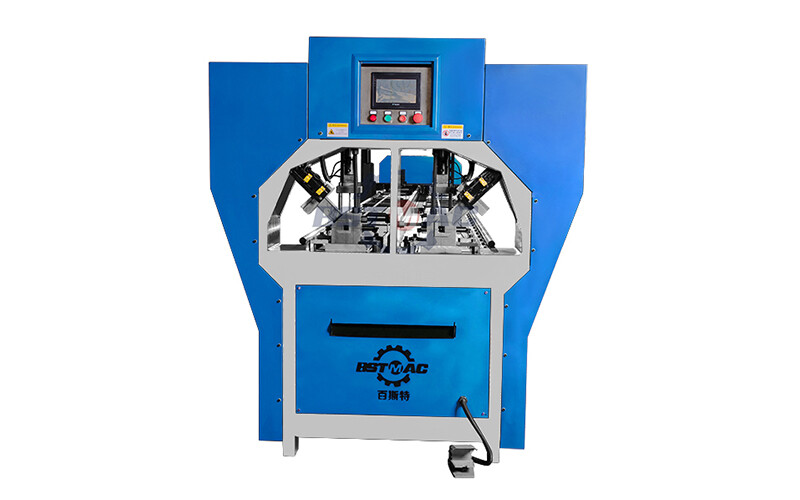

Full automatic tube punching and cut off machine - Foshan BST Machinery Co., Ltd.

Machine features

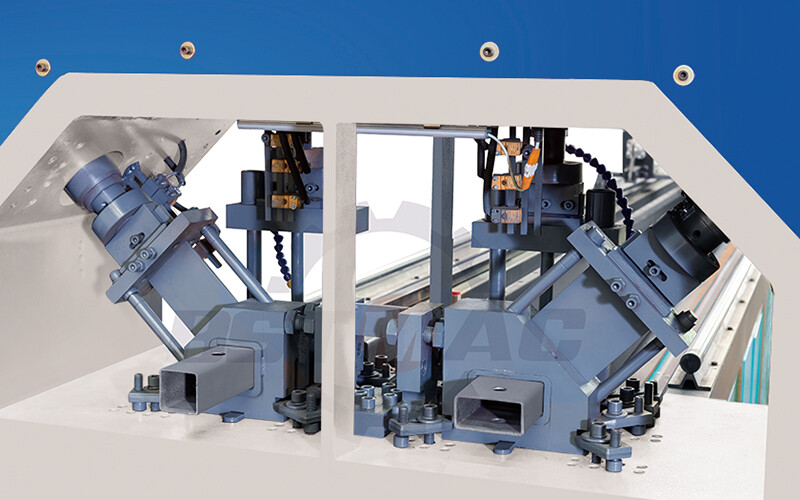

The hydraulic punching machine will be mounted with 2 sets of punching dies and 2 sets of cutting dies. Punching and cutting functions are integrated in one, automatically control the distance.

The CNC automatic punching cutting machine is equipped with PLC touch screen control system, numerical control with LED touch screen.

Reasonable design of punch and die set, to prevent the scratch on the pipe surface. The whole machine is processed by large gantry milling to ensure high precision performance. Punching power is driven by the hydraulic unit with the auto-cooling system.

Technical parameters

Model	BST-80-4-CKCD	BST-100-4-CKCD	BST-125-4-CKCD
Hydraulic motor power	7.5KW	11KW	11KW
Cylinder specifications	80*100mm	100*100mm	125*100mm
Cut off cylinder stroke	100mm	120mm	150mm
Punching cylinder stroke	100mm	100mm	100mm
Punching force	80Kn	125Kn	196Kn
Max. pressure	16Mpa	16Mpa	16Mpa
Punching materials and objects	Material: low-carbon structural steel such as iron A3. Profile: tube, angle iron, channel steel.
Profiles punching size	Square tube: Max. 6060mm (half hole punching), 5050mm (full hole punching). Angle iron: L6060mm. Rectangular tube: Max. 50100mm.
Punching thickness	0-1.0mm	0-2.0mm	0-3.0mm
Allowable height of mold	290mm	290mm	290mm
Power supply	380V-50Hz
Cooling method	Forced air cooling
Control system type	Closed loop control system
Punching frequency	0-1.5S/Time		0.8-2.0S/Time
Servo system	750W		1KW
Operating system	User-friendly touch screen operation
Touch screen	7 inches
Guide rail	Linear guide rail
Oil tank capacity	180L	180L	180L
Oil tank inspection port	Available
Oil tank drain	Quick ball valve type
Working light	DC24V-LED working light
Protection System	Hydraulic pressure protection, voltage protection, motor phase loss and phase sequence protection, motor overheating protection.
Working length	0-6000mm
Overall dimension	708013001700mm	708013501750mm	713015001800mm
Machine weight	2T	2.2T	2.5T

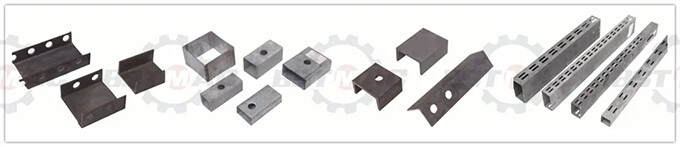

Processing samples

Application industries

FAQ

Q: How to choose the pipe/tube punching machine?

A: You have to inform us the following details:
- The tube shape and size – including wall thickness.
- Material to be punched
- The maximum tube length
- The shape and size of the hole(s) to be punched
- The distance between each hole, how many holes and where they are located in the tube.
- The drawings if possible

Q: How much time is needed to replace the mould?

A: It's fast. Skilled operator can finish within 10 minutes.

Q: How long warranty can you provide?

A: Our machine warranty is one year, and we use all the stable components with long working life!

Q: Are you a manufacturer or trading company?

A: We are a manufacturer, we are dedicated to metalworking machines manufacturing.

Q: What is the trade term?

A: EXW / FOB / CNF / CIF / DDU / DDP.

Q: How can you guarantee the machine quality?

A: Strict quality control, vision inspection one by one before packing.
