Product Details
Tube laser cutting machine with semi-auto loading
Machine features
1.Good flexibility, no need to make the mould for new product development, which greatly shortens the development time of new products and reduces development costs.
2.High speed and high quality laser cutting can be performed on round tubes, square tubes, rectangular tubes, oval tubes and other special-shape tubes.
3.Fast speed and high precision, which can realize pipe cutting, intersecting line cutting and precision cutting of various special-shape and complex graphics that are difficult to be achieved by conventional processing. After programming on professional pipe nesting software, what you see is what you can get.
4.One-time forming, avoiding multiple processing processes such as cutting and grinding in traditional processing, saving costs and improving efficiency.
5.Automatic loading system can realize automatic loading, feeding and cutting.
Technical parameters
|
BST-G120P |
BST-G170P |
BST-G240P |
|
|
Laser power |
1500-6000W |
1500-6000W |
1500-6000W |
|
Cutting range |
φ/□10-120mm |
φ/□:10-170mm |
φ/□:10-240mm |
|
Repeat positioning accuracy |
±0.02mm |
±0.02mm |
±0.02mm |
|
Max. pipe length range |
≈6250mm |
≈6250mm |
≈6250mm |
|
Machine size |
L*W*H: |
L*W*H: |
L*W*H: |
|
Machine body + rack size |
Semi-automatic Full automatic |
Semi-automatic Full automatic |
Semi-automatic Full automatic |
|
Machine weight |
≈3.5T |
≈3.6T |
≈3.8T |
|
Acceleration speed |
≈1.6G |
≈1.3G |
≈1.0G |
|
Cutting tailing length |
≈60 |
≈80mm |
≈100mm |
Square-aperture Full Automatic Pneumatic Chucks
* One-key automatic clamping and automatic centering.
* Large clamping force and adjustable strength, heavy tubes will not be loose and slipped, light tubes do not deform, ensuring cutting accuracy.
* Expand clamping range of square tubes, can clamp and cut round and square tubes with the same size.

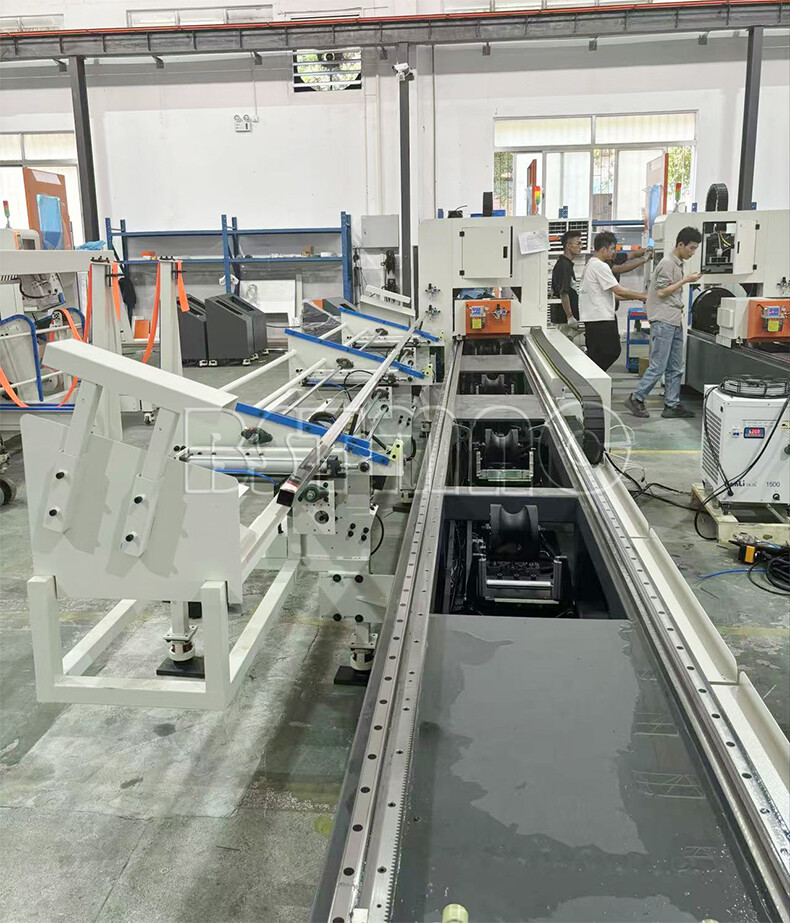

Semi-automatic Loading System
Automatic loading of pipes, efficient and time-saving, shortens production preparation time, improves operation safety, saves labor and reduces production costs
Optional Servo Follow-up Support System
Two-stage floating support device always follows the tube floating support up and down while the rotation radius changes, guarantees cutting accuracy better.

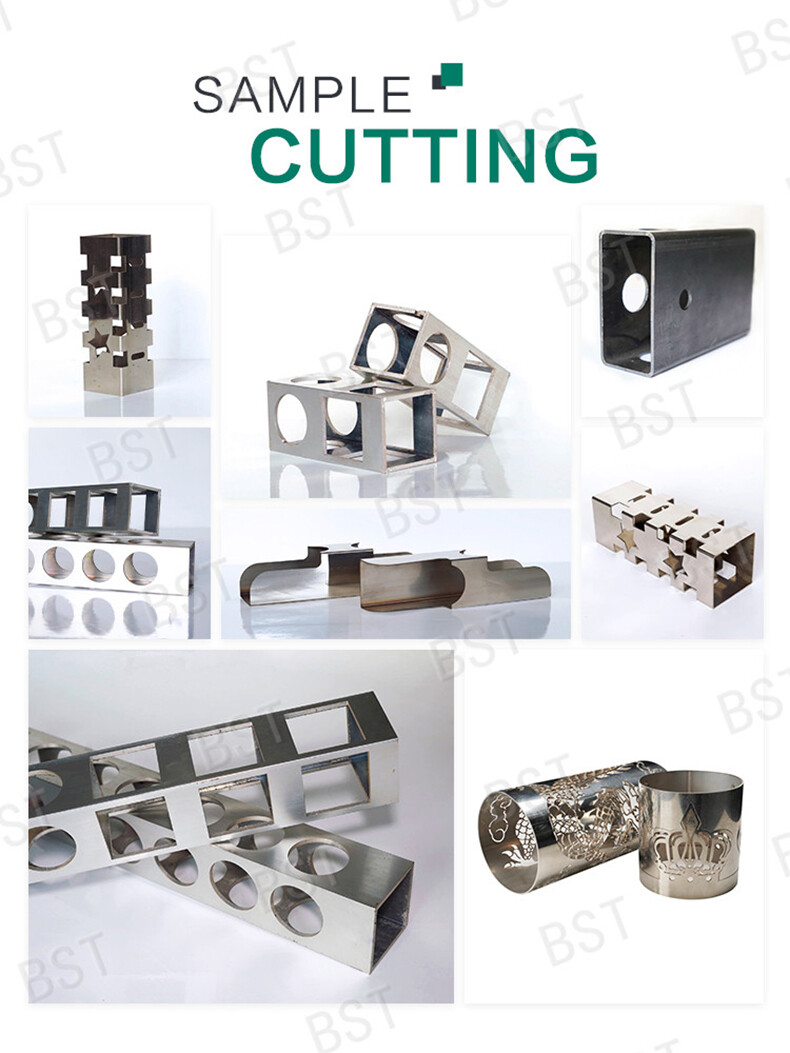

Application Industries And Samples
BST Fiber Laser Cutting Machine is suitable for metal sheet or tube cutting in Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Steel, Aluminum, Copper, Brass, Bronze, Titanium, etc. Different cutting thickness depends on different laser power selection in laser cutting machine.
After-Sales Service Introduction
1.One year warranty for the machine, two years warranty for the laser source, providing a full range of lifetime technical support.
2.From Monday to Sunday 9am to 10pm. Experienced technician to guarantee lifetime online support. So there is no need to worry about technical support due to time difference.
3. Support local after-sales service/on-site services.
