Product Details
Side-hanging type tube laser cutting machine
Machine features
1.High performance laser equipment associated with stable operation system enables optimal cutting effects.
2.Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3.Movable front chuck achieves extremely short cutting tailings, reducing waste of material, and it can better ensure the cutting accuracy of long tubes by chuck displacement.
4.Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
5.Heavy duty machine bed suitable for cutting tubes weighing less than 150kg.
6.Optional semi-automatic and full automatic loading system.
Technical parameters
|
BST-G120C |
BST-G170C |
BST-G240C |
|
|
Laser power |
1500-6000W |
1500-6000W |
1500-6000W |
|
Cutting range |
φ/□10-120mm |
φ/□:10-170mm |
φ/□:10-240mm |
|
Repeat positioning accuracy |
±0.02mm |
±0.02mm |
±0.02mm |
|
Max. pipe length range |
≈6250mm |
≈6250mm |
≈6250mm |
|
Machine size |
L*W*H: |
L*W*H: |
L*W*H: |
|
Machine body + rack size |
Semi-automatic (L*W*H): Full automatic |
Semi-automatic Full automatic |
Semi-automatic Full automatic |
|
Machine weight |
≈3.5T |
≈3.6T |
≈3.8T |
|
Acceleration speed |
≈1.6G |
≈1.3G |
≈1.0G |
|
Cutting tailing length |
≈40mm |
≈80mm |
≈100mm |
Automatic Full Pneumatic Chucks
Fully automatic pneumatic chuck, speed is 3 times of electric chuck. Pneumatic opening and clamping, large clamping force and adjustable strength, heavy tubes will not be loose and slipped, light tubes do not deform, to ensure cutting accuracy.
Optional Servo Follow-up Support System
Two-stage floating support device always follows the tube floating support up and down while the rotation radius changes, guarantees cutting accuracy better.

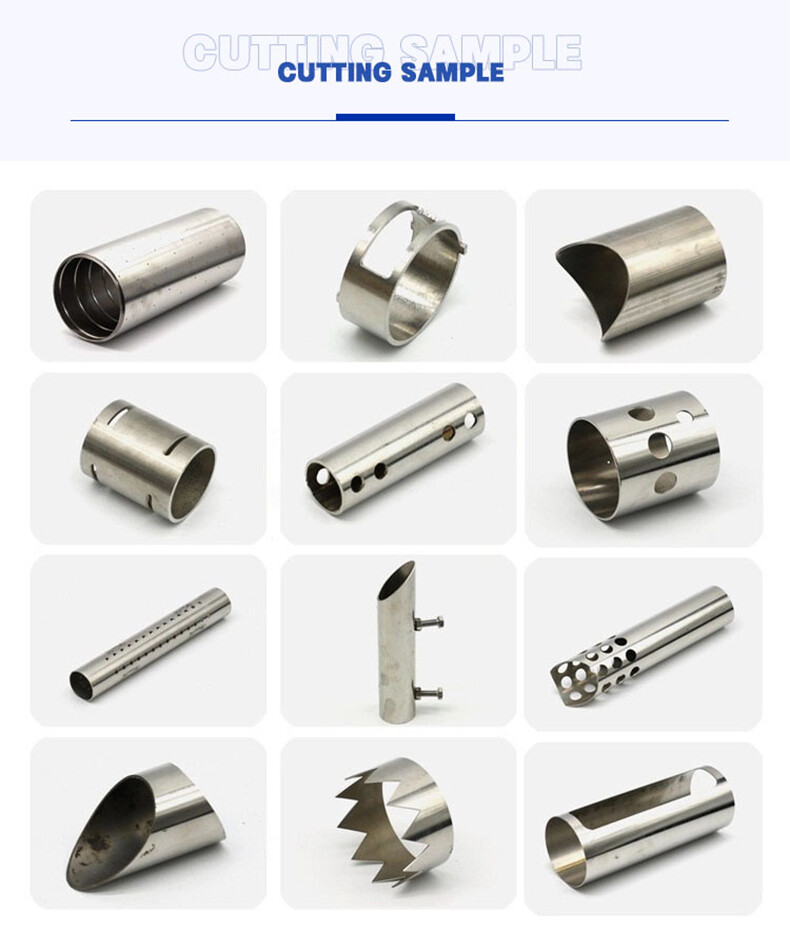

Application Industries And Samples
BST Fiber Laser Cutting Machine is suitable for metal sheet or tube cutting in Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Steel, Aluminum, Copper, Brass, Bronze, Titanium, etc. Different cutting thickness depends on different laser power selection in laser cutting machine.
After-Sales Service Introduction
1.One year warranty for the machine, two years warranty for the laser source, providing a full range of lifetime technical support.
2.From Monday to Sunday 9am to 10pm. Experienced technician to guarantee lifetime online support. So there is no need to worry about technical support due to time difference.
3. Support local after-sales service/on-site services.
